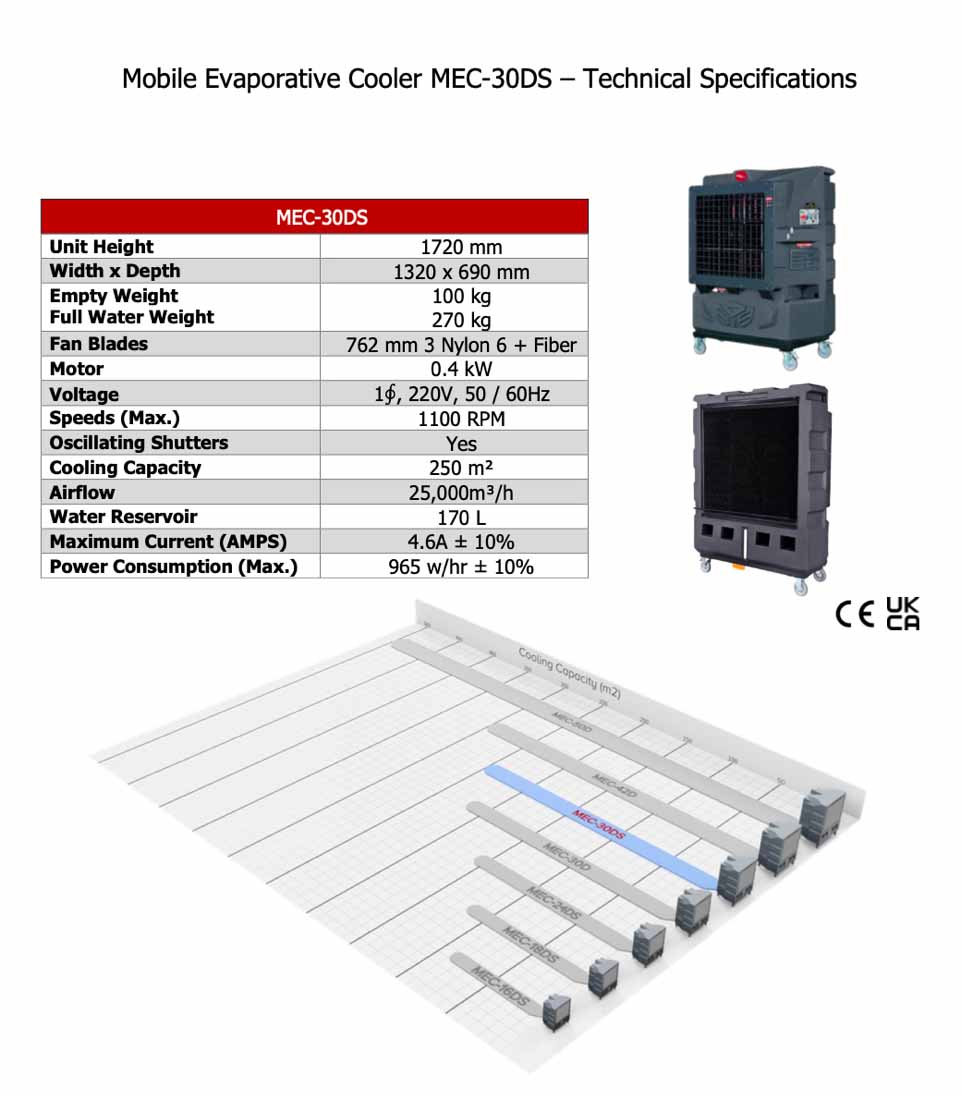

MEC 30 DS

Description

Specification Value
Unit Height (mm) 1720
Width x Depth (mm) 1320 x 690
Empty Weight (kg) 100
Full Water Weight (kg) 270
Fan Blades 762 mm, 3 Nylon 6 + Fiber
Motor (kW) 0.4
Voltage 1φ, 220V, 50/60Hz
Speeds (Max.) (RPM) 1100
Oscillating Shutters Yes
Cooling Capacity (m²) 250
Airflow (m³/h) 25000
Water Reservoir (L) 170
Maximum Current (AMPS) 4.6A ± 10%
Power Consumption (Max.) (w/hr) 965 ± 10%
